Precision and Recall in Python

 В задаче несбалансированной классификации с более чем двумя классами точность рассчитывается как сумма истинных срабатываний по всем классам, деленная на сумму истинных срабатываний и ложных срабатываний по всем классам.

Точность = сумма c в C TruePositives_c / сумма c в C (TruePositives_c + FalsePositives_c)

Например, у нас может быть проблема несбалансированной мультиклассовой классификации, в которой класс большинства является отрицательным классом, но есть два положительных класса меньшинства: класс 1 и класс 2. Точность может количественно определить соотношение правильных прогнозов для обоих положительных классов.

Рассмотрим набор данных с отношением класса меньшинства к классу большинства 1:1:100, то есть отношением 1:1 для каждого положительного класса и отношением 1:100 для классов меньшинства к классу большинства, и у нас есть 100 примеров в каждом меньшинстве. класс и 10 000 примеров в классе большинства.

Модель делает прогнозы и предсказывает 70 примеров для первого класса меньшинства, где 50 правильных и 20 неправильных. Он предсказывает 150 для второго класса с 99 правильными и 51 неправильным. Точность можно рассчитать для этой модели следующим образом:

Точность = (ИстинноПоложительные_1 + ИстинныеПоложительные_2) / ((ИстинноПоложительные_1 + ИстинныеПоложительные_2) + (ЛожныеПоложительные_1 + ЛожныеПоложительные_2))

Точность = (50 + 99) / ((50 + 99) + (20 + 51))

Точность = 149 / (149 + 71)

Точность = 149/220

Точность = 0,677

При использовании функции precision_score() для мультиклассовой классификации важно указать миноритарные классы с помощью аргумента «метки» и установить для аргумента «среднее» значение «микро», чтобы гарантировать, что расчет выполняется так, как мы ожидаем.

Code1

(.env) [boris@fedora34server NUMPY]$ cat CalculatePrecision1.py

# calculates precision for 1:1:100 dataset with 50tp,20fp, 99tp,51fp

from sklearn.metrics import precision_score

# define actual

act_pos1 = [1 for _ in range(100)]

act_pos2 = [2 for _ in range(100)]

act_neg = [0 for _ in range(10000)]

y_true = act_pos1 + act_pos2 + act_neg

# define predictions

pred_pos1 = [0 for _ in range(50)] + [1 for _ in range(50)]

pred_pos2 = [0 for _ in range(1)] + [2 for _ in range(99)]

pred_neg = [1 for _ in range(20)] + [2 for _ in range(51)] + [0 for _ in range(9929)]

y_pred = pred_pos1 + pred_pos2 + pred_neg

# calculate prediction

precision = precision_score(y_true, y_pred, labels=[1,2], average='micro')

print('Precision: %.3f' % precision)

Отзыв для многоклассовой классификации

Напомним, не ограничивается задачами бинарной классификации.

В задаче несбалансированной классификации с более чем двумя классами полнота вычисляется как сумма истинных положительных результатов по всем классам, деленная на сумму истинных положительных и ложных отрицательных результатов по всем классам.

Отзыв = Сумма c в C TruePositives_c / Сумма c в C (TruePositives_c + FalseNegatives_c)

Как и в предыдущем разделе, рассмотрим набор данных с отношением класса меньшинства к классу большинства 1:1:100, то есть отношением 1:1 для каждого положительного класса и отношением 1:100 для классов меньшинства к классу большинства, и мы иметь 100 примеров в каждом классе меньшинства и 10 000 примеров в классе большинства.

Модель правильно предсказывает 77 примеров и 23 неверно для класса 1, 95 правильно и пять неверно для класса 2. Мы можем рассчитать полноту для этой модели следующим образом:

Напомним = (ИстинноПоложительные_1 + ИстинныеПоложительные_2) / ((ИстинноПоложительные_1 + ИстинныеПоложительные_2) + (ЛожноОтрицательные_1 + ЛожноОтрицательные_2))

Напомним = (77 + 95) / ((77 + 95) + (23 + 5))

Напомним = 172 / (172 + 28)

Напомним = 172/200

Напомним = 0,86

Мы также можем использовать функцию Recall_score() для несбалансированных задач мультиклассовой классификации.

В этом случае набор данных имеет дисбаланс 1:1:100, по 100 в каждом классе меньшинства и 10 000 в классе большинства. Модель предсказывает 77 истинных положительных результатов и 23 ложных отрицательных результата для класса 1 и 95 истинных положительных результатов и пять ложных отрицательных результатов для класса 2.

Code2

(.env) [boris@fedora34server NUMPY]$ cat CalculateRecall.py

# calculates recall for 1:1:100 dataset with 77tp,23fn and 95tp,5fn

from sklearn.metrics import recall_score

# define actual

act_pos1 = [1 for _ in range(100)]

act_pos2 = [2 for _ in range(100)]

act_neg = [0 for _ in range(10000)]

y_true = act_pos1 + act_pos2 + act_neg

# define predictions

pred_pos1 = [0 for _ in range(23)] + [1 for _ in range(77)]

pred_pos2 = [0 for _ in range(5)] + [2 for _ in range(95)]

pred_neg = [0 for _ in range(10000)]

y_pred = pred_pos1 + pred_pos2 + pred_neg

# calculate recall

recall = recall_score(y_true, y_pred, labels=[1,2], average='micro')

print('Recall: %.3f' % recall)

References

https://machinelearningmastery.com/precision-recall-and-f-measure-for-imbalanced-classification

Logistic regression in Python

 Code1

(.env) [boris@fedora34server NUMPY]$ cat logistRegression.py

import pandas as pd

from sklearn.model_selection import train_test_split

from sklearn.linear_model import LogisticRegression

from sklearn import metrics

import seaborn as sn

import matplotlib.pyplot as plt

candidates = {'gmat': [780,750,690,710,680,730,690,720,740,690,610,690,710,680,770,610,580,650,540,590,620,600,550,550,570,670,660,580,650,660,640,620,660,660,680,650,670,580,590,690],'gpa': [4,3.9,3.3,3.7,3.9,3.7,2.3,3.3,3.3,1.7,2.7,3.7,3.7,3.3,3.3,3,2.7,3.7,2.7,2.3,3.3,2,2.3,2.7,3,3.3,3.7,2.3,3.7,3.3,3,2.7,4,3.3,3.3,2.3,2.7,3.3,1.7,3.7],'work_experience': [3,4,3,5,4,6,1,4,5,1,3,5,6,4,3,1,4,6,2,3,2,1,4,1,2,6,4,2,6,5,1,2,4,6,5,1,2,1,4,5],'admitted': [1,1,0,1,0,1,0,1,1,0,0,1,1,0,1,0,0,1,0,0,1,0,0,0,0,1,1,0,1,1,0,0,1,1,1,0,0,0,0,1]

 }

df = pd.DataFrame(candidates,columns= ['gmat', 'gpa','work_experience','admitted'])

X = df[['gmat', 'gpa','work_experience']]

y = df['admitted']

X_train,X_test,y_train,y_test = train_test_split(X,y,test_size=0.25,random_state=0)

logistic_regression= LogisticRegression()

logistic_regression.fit(X_train,y_train)

y_pred=logistic_regression.predict(X_test)

confusion_matrix = pd.crosstab(y_test, y_pred, rownames=['Actual'], colnames=['Predicted'])

sn.heatmap(confusion_matrix, annot=True)

print('Accuracy: ',metrics.accuracy_score(y_test, y_pred))

plt.show()

===============

Code2

(.env) [boris@fedora34server NUMPY]$ cat logistRegression1.py

import pandas as pd

from sklearn.model_selection import train_test_split

from sklearn.linear_model import LogisticRegression

candidates = {'gmat': [780,750,690,710,680,730,690,720,740,690,610,690,710,680,770,610,580,650,540,590,620,600,550,550,570,670,660,580,650,660,640,620,660,660,680,650,670,580,590,690],'gpa': [4,3.9,3.3,3.7,3.9,3.7,2.3,3.3,3.3,1.7,2.7,3.7,3.7,3.3,3.3,3,2.7,3.7,2.7,2.3,3.3,2,2.3,2.7,3,3.3,3.7,2.3,3.7,3.3,3,2.7,4,3.3,3.3,2.3,2.7,3.3,1.7,3.7],'work_experience': [3,4,3,5,4,6,1,4,5,1,3,5,6,4,3,1,4,6,2,3,2,1,4,1,2,6,4,2,6,5,1,2,4,6,5,1,2,1,4,5],'admitted': [1,1,0,1,0,1,0,1,1,0,0,1,1,0,1,0,0,1,0,0,1,0,0,0,0,1,1,0,1,1,0,0,1,1,1,0,0,0,0,1]

              }

df = pd.DataFrame(candidates,columns= ['gmat', 'gpa','work_experience','admitted'])

X = df[['gmat', 'gpa','work_experience']]

y = df['admitted']

#train is based on 75% of the dataset, test is based on 25% of dataset

X_train,X_test,y_train,y_test = train_test_split(X,y,test_size=0.25,random_state=0)

logistic_regression= LogisticRegression()

logistic_regression.fit(X_train,y_train)

y_pred=logistic_regression.predict(X_test)

print (X_test) #test dataset

print (y_pred) #predicted values

==============

Code3

(.env) [boris@fedora34server NUMPY]$ cat logistRegression2.py

import pandas as pd

from sklearn.model_selection import train_test_split

from sklearn.linear_model import LogisticRegression

candidates = {'gmat': [780,750,690,710,680,730,690,720,740,690,610,690,710,680,770,610,580,650,540,590,620,600,550,550,570,670,660,580,650,660,640,620,660,660,680,650,670,580,590,690],'gpa': [4,3.9,3.3,3.7,3.9,3.7,2.3,3.3,3.3,1.7,2.7,3.7,3.7,3.3,3.3,3,2.7,3.7,2.7,2.3,3.3,2,2.3,2.7,3,3.3,3.7,2.3,3.7,3.3,3,2.7,4,3.3,3.3,2.3,2.7,3.3,1.7,3.7],'work_experience': [3,4,3,5,4,6,1,4,5,1,3,5,6,4,3,1,4,6,2,3,2,1,4,1,2,6,4,2,6,5,1,2,4,6,5,1,2,1,4,5],'admitted': [1,1,0,1,0,1,0,1,1,0,0,1,1,0,1,0,0,1,0,0,1,0,0,0,0,1,1,0,1,1,0,0,1,1,1,0,0,0,0,1]

              }

df = pd.DataFrame(candidates,columns= ['gmat', 'gpa','work_experience','admitted'])

X = df[['gmat', 'gpa','work_experience']]

y = df['admitted']

X_train,X_test,y_train,y_test = train_test_split(X,y,test_size=0.25,random_state=0)  #in this case, you may choose to set the test_size=0. You should get the same prediction here

logistic_regression= LogisticRegression()

logistic_regression.fit(X_train,y_train)

new_candidates = {'gmat': [590,740,680,610,710],

                  'gpa': [2,3.7,3.3,2.3,3],

                  'work_experience': [3,4,6,1,5]

                  }

df2 = pd.DataFrame(new_candidates,columns= ['gmat', 'gpa','work_experience'])

y_pred=logistic_regression.predict(df2)

print (df2)

print (y_pred)

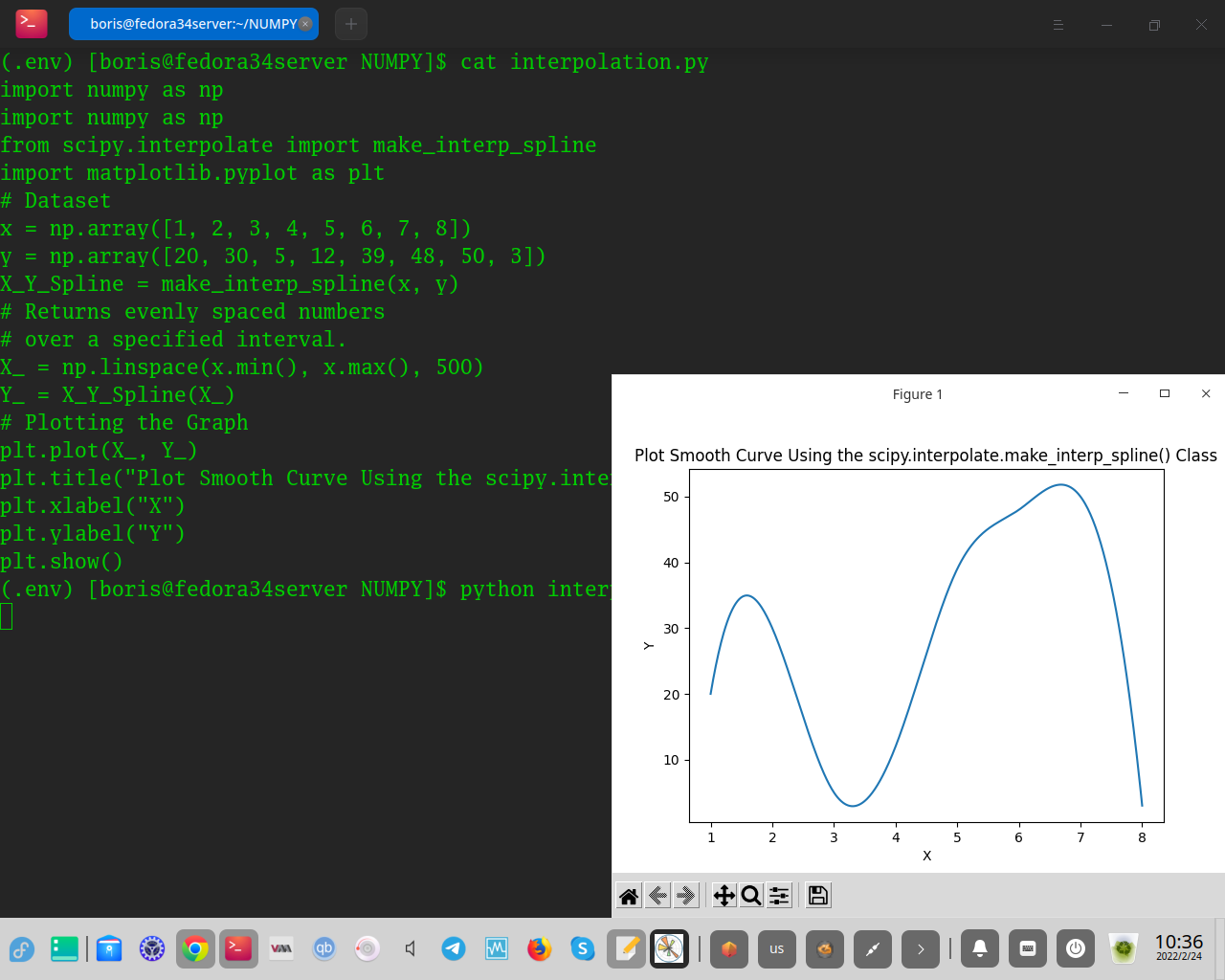

Python Interpolation of smooth curve

 Code sample

(.env) [boris@fedora34server NUMPY]$ cat interpolation.py

import numpy as np

import numpy as np

from scipy.interpolate import make_interp_spline

import matplotlib.pyplot as plt

# Dataset

x = np.array([1, 2, 3, 4, 5, 6, 7, 8])

y = np.array([20, 30, 5, 12, 39, 48, 50, 3])

X_Y_Spline = make_interp_spline(x, y)

# Returns evenly spaced numbers

# over a specified interval.

X_ = np.linspace(x.min(), x.max(), 500)

Y_ = X_Y_Spline(X_)

# Plotting the Graph

plt.plot(X_, Y_)

plt.title("Plot Smooth Curve Using the scipy.interpolate.make_interp_spline() Class")

plt.xlabel("X")

plt.ylabel("Y")

plt.show()

Impact of Learning Rate on Neural Network Performance

Code 0

(.env) [boris@fedora34server SPEEDLN]$ cat  learnSPD00.py

# scatter plot of blobs dataset

from sklearn.datasets import make_blobs

from matplotlib import pyplot

from numpy import where

# generate 2d classification dataset

X, y = make_blobs(n_samples=1000, centers=3, n_features=2, cluster_std=2, random_state=2)

# scatter plot for each class value

for class_value in range(3):

        # select indices of points with the class label

        row_ix = where(y == class_value)

        # scatter plot for points with a different color

        pyplot.scatter(X[row_ix, 0], X[row_ix, 1])

# show plot

pyplot.show()

***************************

 Code 1

(.env) [boris@fedora34server SPEEDLN]$ cat learnSPD01.py

# study of learning rate on accuracy for blobs problem

from sklearn.datasets import make_blobs

from keras.layers import Dense

from keras.models import Sequential

# from keras.optimizers import SGD

from tensorflow.keras.optimizers import SGD

from tensorflow.keras.utils import to_categorical

from matplotlib import pyplot

# prepare train and test dataset

def prepare_data():

        # generate 2d classification dataset

        X, y = make_blobs(n_samples=1000, centers=3, n_features=2, cluster_std=2, random_state=2)

        # one hot encode output variable

        y = to_categorical(y)

        # split into train and test

        n_train = 500

        trainX, testX = X[:n_train, :], X[n_train:, :]

        trainy, testy = y[:n_train], y[n_train:]

        return trainX, trainy, testX, testy

# fit a model and plot learning curve

def fit_model(trainX, trainy, testX, testy, lrate):

        # define model

        model = Sequential()

        model.add(Dense(50, input_dim=2, activation='relu', kernel_initializer='he_uniform'))

        model.add(Dense(3, activation='softmax'))

        # compile model

        opt = SGD(learning_rate=lrate)

        model.compile(loss='categorical_crossentropy', optimizer=opt, metrics=['accuracy'])

        # fit model

        history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=200, verbose=0)

        # plot learning curves

        pyplot.plot(history.history['accuracy'], label='train')

        pyplot.plot(history.history['val_accuracy'], label='test')

        pyplot.title('lrate='+str(lrate), pad=-50)

# prepare dataset

trainX, trainy, testX, testy = prepare_data()

# create learning curves for different learning rates

learning_rates = [1E-0, 1E-1, 1E-2, 1E-3, 1E-4, 1E-5, 1E-6, 1E-7]

for i in range(len(learning_rates)):

        # determine the plot number

        plot_no = 420 + (i+1)

        pyplot.subplot(plot_no)

        # fit model and plot learning curves for a learning rate

        fit_model(trainX, trainy, testX, testy, learning_rates[i])

# show learning curves

pyplot.show()

**************************

Code 2

(.env) [boris@fedora34server SPEEDLN]$ cat learnSPD02.py

# study of momentum on accuracy for blobs problem

from sklearn.datasets import make_blobs

from keras.layers import Dense

from keras.models import Sequential

from tensorflow.keras.optimizers import SGD

from tensorflow.keras.utils import to_categorical

from matplotlib import pyplot



# prepare train and test dataset

def prepare_data():

        # generate 2d classification dataset

        X, y = make_blobs(n_samples=1000, centers=3, n_features=2, cluster_std=2, random_state=2)

        # one hot encode output variable

        y = to_categorical(y)

        # split into train and test

        n_train = 500

        trainX, testX = X[:n_train, :], X[n_train:, :]

        trainy, testy = y[:n_train], y[n_train:]

        return trainX, trainy, testX, testy



# fit a model and plot learning curve

def fit_model(trainX, trainy, testX, testy, momentum):

        # define model

        model = Sequential()

        model.add(Dense(50, input_dim=2, activation='relu', kernel_initializer='he_uniform'))

        model.add(Dense(3, activation='softmax'))

        # compile model

        opt = SGD(learning_rate=0.01, momentum=momentum)

        model.compile(loss='categorical_crossentropy', optimizer=opt, metrics=['accuracy'])

        # fit model

        history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=200, verbose=0)

        # plot learning curves

        pyplot.plot(history.history['accuracy'], label='train')

        pyplot.plot(history.history['val_accuracy'], label='test')

        pyplot.title('momentum='+str(momentum), pad=-80)



# prepare dataset

trainX, trainy, testX, testy = prepare_data()

# create learning curves for different momentums

momentums = [0.0, 0.5, 0.9, 0.99]

for i in range(len(momentums)):

        # determine the plot number

        plot_no = 220 + (i+1)

        pyplot.subplot(plot_no)

        # fit model and plot learning curves for a momentum

        fit_model(trainX, trainy, testX, testy, momentums[i])

# show learning curves

pyplot.show()

*****************

Code 3

(.env) [boris@fedora34server SPEEDLN]$ cat learnSPD03.py

# study of decay rate on accuracy for blobs problem

from sklearn.datasets import make_blobs

from keras.layers import Dense

from keras.models import Sequential

from tensorflow.keras.optimizers import SGD

from tensorflow.keras.utils import to_categorical

from matplotlib import pyplot



# prepare train and test dataset

def prepare_data():

        # generate 2d classification dataset

        X, y = make_blobs(n_samples=1000, centers=3, n_features=2, cluster_std=2, random_state=2)

        # one hot encode output variable

        y = to_categorical(y)

        # split into train and test

        n_train = 500

        trainX, testX = X[:n_train, :], X[n_train:, :]

        trainy, testy = y[:n_train], y[n_train:]

        return trainX, trainy, testX, testy



# fit a model and plot learning curve

def fit_model(trainX, trainy, testX, testy, decay):

        # define model

        model = Sequential()

        model.add(Dense(50, input_dim=2, activation='relu', kernel_initializer='he_uniform'))

        model.add(Dense(3, activation='softmax'))

        # compile model

        opt = SGD(learning_rate=0.01, decay=decay)

        model.compile(loss='categorical_crossentropy', optimizer=opt, metrics=['accuracy'])

        # fit model

        history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=200, verbose=0)

        # plot learning curves

        pyplot.plot(history.history['accuracy'], label='train')

        pyplot.plot(history.history['val_accuracy'], label='test')

        pyplot.title('decay='+str(decay), pad=-80)



# prepare dataset

trainX, trainy, testX, testy = prepare_data()

# create learning curves for different decay rates

decay_rates = [1E-1, 1E-2, 1E-3, 1E-4]

for i in range(len(decay_rates)):

        # determine the plot number

        plot_no = 220 + (i+1)

        pyplot.subplot(plot_no)

        # fit model and plot learning curves for a decay rate

        fit_model(trainX, trainy, testX, testy, decay_rates[i])

# show learning curves

pyplot.show()

*******************

Code 4

(.env) [boris@fedora34server SPEEDLN]$ cat learnSPD04.py

# study of patience for the learning rate drop schedule on the blobs problem

from sklearn.datasets import make_blobs

from keras.layers import Dense

from keras.models import Sequential

from tensorflow.keras.optimizers import SGD

from tensorflow.keras.utils import to_categorical

from keras.callbacks import Callback

from keras.callbacks import ReduceLROnPlateau

from keras import backend

from matplotlib import pyplot



# monitor the learning rate

class LearningRateMonitor(Callback):

        # start of training

        def on_train_begin(self, logs={}):

                self.lrates = list()



        # end of each training epoch

        def on_epoch_end(self, epoch, logs={}):

                # get and store the learning rate

                optimizer = self.model.optimizer

                lrate = float(backend.get_value(self.model.optimizer.lr))

                self.lrates.append(lrate)



# prepare train and test dataset

def prepare_data():

        # generate 2d classification dataset

        X, y = make_blobs(n_samples=1000, centers=3, n_features=2, cluster_std=2, random_state=2)

        # one hot encode output variable

        y = to_categorical(y)

        # split into train and test

        n_train = 500

        trainX, testX = X[:n_train, :], X[n_train:, :]

        trainy, testy = y[:n_train], y[n_train:]

        return trainX, trainy, testX, testy



# fit a model and plot learning curve

def fit_model(trainX, trainy, testX, testy, patience):

        # define model

        model = Sequential()

        model.add(Dense(50, input_dim=2, activation='relu', kernel_initializer='he_uniform'))

        model.add(Dense(3, activation='softmax'))

        # compile model

        opt = SGD(learning_rate=0.01)

        model.compile(loss='categorical_crossentropy', optimizer=opt, metrics=['accuracy'])

        # fit model

        rlrp = ReduceLROnPlateau(monitor='val_loss', factor=0.1, patience=patience, min_delta=1E-7)

        lrm = LearningRateMonitor()

        history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=200, verbose=0, callbacks=[rlrp, lrm])

        return lrm.lrates, history.history['loss'], history.history['accuracy']



# create line plots for a series

def line_plots(patiences, series):

        for i in range(len(patiences)):

                pyplot.subplot(220 + (i+1))

                pyplot.plot(series[i])

                pyplot.title('patience='+str(patiences[i]), pad=-80)

        pyplot.show()



# prepare dataset

trainX, trainy, testX, testy = prepare_data()

# create learning curves for different patiences

patiences = [2, 5, 10, 15]

lr_list, loss_list, acc_list, = list(), list(), list()

for i in range(len(patiences)):

        # fit model and plot learning curves for a patience

        lr, loss, acc = fit_model(trainX, trainy, testX, testy, patiences[i])

        lr_list.append(lr)

        loss_list.append(loss)

        acc_list.append(acc)

# plot learning rates

line_plots(patiences, lr_list)

# plot loss

line_plots(patiences, loss_list)

# plot accuracy

line_plots(patiences, acc_list)

*************************

Code 5

(.env) [boris@fedora34server SPEEDLN]$ cat learnSPD05.py

# study of sgd with adaptive learning rates in the blobs problem

from sklearn.datasets import make_blobs

from keras.layers import Dense

from keras.models import Sequential

from tensorflow.keras.optimizers import SGD

from tensorflow.keras.utils import to_categorical

from keras.callbacks import Callback

from keras import backend

from matplotlib import pyplot



# prepare train and test dataset

def prepare_data():

        # generate 2d classification dataset

        X, y = make_blobs(n_samples=1000, centers=3, n_features=2, cluster_std=2, random_state=2)

        # one hot encode output variable

        y = to_categorical(y)

        # split into train and test

        n_train = 500

        trainX, testX = X[:n_train, :], X[n_train:, :]

        trainy, testy = y[:n_train], y[n_train:]

        return trainX, trainy, testX, testy



# fit a model and plot learning curve

def fit_model(trainX, trainy, testX, testy, optimizer):

        # define model

        model = Sequential()

        model.add(Dense(50, input_dim=2, activation='relu', kernel_initializer='he_uniform'))

        model.add(Dense(3, activation='softmax'))

        # compile model

        model.compile(loss='categorical_crossentropy', optimizer=optimizer, metrics=['accuracy'])

        # fit model

        history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=200, verbose=0)

        # plot learning curves

        pyplot.plot(history.history['accuracy'], label='train')

        pyplot.plot(history.history['val_accuracy'], label='test')

        pyplot.title('opt='+optimizer, pad=-80)



# prepare dataset

trainX, trainy, testX, testy = prepare_data()

# create learning curves for different optimizers

momentums = ['sgd', 'rmsprop', 'adagrad', 'adam']

for i in range(len(momentums)):

        # determine the plot number

        plot_no = 220 + (i+1)

        pyplot.subplot(plot_no)

        # fit model and plot learning curves for an optimizer

        fit_model(trainX, trainy, testX, testy, momentums[i])

# show learning curves

pyplot.show()

References

https://machinelearningmastery.com/understand-the-dynamics-of-learning-rate-on-deep-learning-neural-networks/

Calculate Feature Importance With Python

 Code 1

(.env) [boris@fedora34server NUMPY]$ cat foresTree1.py

# decision tree for feature importance on a regression problem

from sklearn.datasets import make_regression

from sklearn.tree import DecisionTreeRegressor

from matplotlib import pyplot

# define dataset

X, y = make_regression(n_samples=1000, n_features=10, n_informative=5, random_state=1)

# define the model

model = DecisionTreeRegressor()

# fit the model

model.fit(X, y)

# get importance

importance = model.feature_importances_

# summarize feature importance

for i,v in enumerate(importance):

        print('Feature: %0d, Score: %.5f' % (i,v))

# plot feature importance

pyplot.bar([x for x in range(len(importance))], importance)

pyplot.show()

*********************

Code 2

(.env) [boris@fedora34server NUMPY]$ cat foresTree2.py

# decision tree for feature importance on a classification problem

from sklearn.datasets import make_classification

from sklearn.tree import DecisionTreeClassifier

from matplotlib import pyplot

# define dataset

X, y = make_classification(n_samples=1000, n_features=10, n_informative=5, n_redundant=5, random_state=1)

# define the model

model = DecisionTreeClassifier()

# fit the model

model.fit(X, y)

# get importance

importance = model.feature_importances_

# summarize feature importance

for i,v in enumerate(importance):

        print('Feature: %0d, Score: %.5f' % (i,v))

# plot feature importance

pyplot.bar([x for x in range(len(importance))], importance)

pyplot.show()

References

https://machinelearningmastery.com/calculate-feature-importance-with-python/

Linear vs nonlinear neural network

Code 1

(.env) [boris@fedora34server NUMPY]$ python NonLinear.py

input: [0 0] - output: [0.]

input: [0 1] - output: [1.]

input: [1 0] - output: [1.]

input: [1 1] - output: [-0.]

(.env) [boris@fedora34server NUMPY]$ cat NonLinear.py

import numpy as np

#Data

data = np.array([[0, 0, 0],[0, 1, 1],[1, 0, 1],[1, 1, 0]])

np.random.shuffle(data)

train_data = data[:,:2]

target_data = data[:,2]

#XOR architecture

class XOR_class():

    def __init__(self, train_data, target_data, alpha=.1, epochs=10000):

        self.train_data = train_data

        self.target_data = target_data

        self.alpha = alpha

        self.epochs = epochs



        #Random weights

        self.W0 = np.random.uniform(low=-1, high=1, size=(2)).T

        self.b0 = np.random.uniform(low=-1, high=1, size=(1))

        self.W2 = np.random.uniform(low=-1, high=1, size=(2)).T

        self.b2 = np.random.uniform(low=-1, high=1, size=(1))

    #xor network (linear transfer functions only)

    def xor_network(self, X0):

        n0 = np.dot(X0, self.W0) + self.b0

        X1 = n0*X0

        a = np.dot(X1, self.W2) + self.b2

        return(a, X1)

    #Training the xor network

    def train(self):

        for epoch in range(self.epochs):

            for i in range(len(self.train_data)):

                # Forward Propagation:

                X0 = self.train_data[i]

                a, X1 = self.xor_network(X0)



                # Backward Propagation:

                e = self.target_data[i] - a

                s_2 = -2*e



                # Update Weights:

                self.W0 = self.W0 - (self.alpha*s_2*X0)

                self.b0 = self.b0 - (self.alpha*s_2)

                self.W2 = self.W2 - (self.alpha*s_2*X1)

                self.b2 = self.b2 - (self.alpha*s_2)



        #Restart training if we get lost in the parameter space.

        if np.isnan(a) or (a > 1) or (a < -1):

            print('Bad initialization, reinitializing.')

            self.W0 = np.random.uniform(low=-1, high=1, size=(2)).T

            self.b0 = np.random.uniform(low=-1, high=1, size=(1))

            self.W2 = np.random.uniform(low=-1, high=1, size=(2)).T

            self.b2 = np.random.uniform(low=-1, high=1, size=(1))

            self.train()



    #Predicting using the trained weights.

    def predict(self, test_data):

        for i in train_data:

            a, X1 = self.xor_network(i)

            #I cut off decimals past 12 for convienience, not necessary.

            print(f'input: {i} - output: {np.round(a, 12)}')

# Execution

xor = XOR_class(train_data, target_data)

xor.train()

np.random.shuffle(data)

test_data = data[:,:2]

xor.predict(test_data)

References

https://stackoverflow.com/questions/41244421/linear-vs-nonlinear-neural-network?rq=1

Vanishing Gradients Problem Using the ReLU

 Code 1

(.env) [boris@fedora34server NUMPY]$ cat vahish2Issue1.py

# scatter plot of the circles dataset with points colored by class

from sklearn.datasets import make_circles

from numpy import where

from matplotlib import pyplot

# generate circles

X, y = make_circles(n_samples=1000, noise=0.1, random_state=1)

# select indices of points with each class label

for i in range(2):

        samples_ix = where(y == i)

        pyplot.scatter(X[samples_ix, 0], X[samples_ix, 1], label=str(i))

pyplot.legend()

pyplot.show()

****************

Code 2

(.env) [boris@fedora34server NUMPY]$ cat vahish2Issue2.py

# mlp for the two circles classification problem

from sklearn.datasets import make_circles

from sklearn.preprocessing import MinMaxScaler

from keras.layers import Dense

from keras.models import Sequential

from tensorflow.keras.optimizers import SGD

from keras.initializers import RandomUniform

from matplotlib import pyplot

# generate 2d classification dataset

X, y = make_circles(n_samples=1000, noise=0.1, random_state=1)

# scale input data to [-1,1]

scaler = MinMaxScaler(feature_range=(-1, 1))

X = scaler.fit_transform(X)

# split into train and test

n_train = 500

trainX, testX = X[:n_train, :], X[n_train:, :]

trainy, testy = y[:n_train], y[n_train:]

# define model

model = Sequential()

init = RandomUniform(minval=0, maxval=1)

model.add(Dense(5, input_dim=2, activation='tanh', kernel_initializer=init))

model.add(Dense(1, activation='sigmoid', kernel_initializer=init))

# compile model

opt = SGD(learning_rate=0.01, momentum=0.9)

model.compile(loss='binary_crossentropy', optimizer=opt, metrics=['accuracy'])

# fit model

history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=500, verbose=0)

# evaluate the model

_, train_acc = model.evaluate(trainX, trainy, verbose=0)

_, test_acc = model.evaluate(testX, testy, verbose=0)

print('Train: %.3f, Test: %.3f' % (train_acc, test_acc))

# plot training history

pyplot.plot(history.history['accuracy'], label='train')

pyplot.plot(history.history['val_accuracy'], label='test')

pyplot.legend()

pyplot.show()

*****************

Code 3

(.env) [boris@fedora34server NUMPY]$ cat vahish2Issue3.py

# deeper mlp for the two circles classification problem

from sklearn.datasets import make_circles

from sklearn.preprocessing import MinMaxScaler

from keras.layers import Dense

from keras.models import Sequential

from tensorflow.keras.optimizers import SGD

from keras.initializers import RandomUniform

from matplotlib import pyplot

# generate 2d classification dataset

X, y = make_circles(n_samples=1000, noise=0.1, random_state=1)

scaler = MinMaxScaler(feature_range=(-1, 1))

X = scaler.fit_transform(X)

# split into train and test

n_train = 500

trainX, testX = X[:n_train, :], X[n_train:, :]

trainy, testy = y[:n_train], y[n_train:]

# define model

init = RandomUniform(minval=0, maxval=1)

model = Sequential()

model.add(Dense(5, input_dim=2, activation='tanh', kernel_initializer=init))

model.add(Dense(5, activation='tanh', kernel_initializer=init))

model.add(Dense(5, activation='tanh', kernel_initializer=init))

model.add(Dense(5, activation='tanh', kernel_initializer=init))

model.add(Dense(5, activation='tanh', kernel_initializer=init))

model.add(Dense(1, activation='sigmoid', kernel_initializer=init))

# compile model

opt = SGD(learning_rate=0.01, momentum=0.9)

model.compile(loss='binary_crossentropy', optimizer=opt, metrics=['accuracy'])

# fit model

history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=500, verbose=0)

# evaluate the model

_, train_acc = model.evaluate(trainX, trainy, verbose=0)

_, test_acc = model.evaluate(testX, testy, verbose=0)

print('Train: %.3f, Test: %.3f' % (train_acc, test_acc))

# plot training history

pyplot.plot(history.history['accuracy'], label='train')

pyplot.plot(history.history['val_accuracy'], label='test')

pyplot.legend()

pyplot.show()

**************

Code5

(.env) [boris@fedora34server NUMPY]$ cat vahish2Issue5.py

# deeper mlp with relu for the two circles classification problem

from sklearn.datasets import make_circles

from sklearn.preprocessing import MinMaxScaler

from keras.layers import Dense

from keras.models import Sequential

from tensorflow.keras.optimizers import SGD

from keras.initializers import RandomUniform

from matplotlib import pyplot

# generate 2d classification dataset

X, y = make_circles(n_samples=1000, noise=0.1, random_state=1)

scaler = MinMaxScaler(feature_range=(-1, 1))

X = scaler.fit_transform(X)

# split into train and test

n_train = 500

trainX, testX = X[:n_train, :], X[n_train:, :]

trainy, testy = y[:n_train], y[n_train:]

# define model

model = Sequential()

model.add(Dense(5, input_dim=2, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(5, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(5, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(5, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(5, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(1, activation='sigmoid'))

# compile model

opt = SGD(learning_rate=0.01, momentum=0.9)

model.compile(loss='binary_crossentropy', optimizer=opt, metrics=['accuracy'])

# fit model

history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=500, verbose=0)

# evaluate the model

_, train_acc = model.evaluate(trainX, trainy, verbose=0)

_, test_acc = model.evaluate(testX, testy, verbose=0)

print('Train: %.3f, Test: %.3f' % (train_acc, test_acc))

# plot training history

pyplot.plot(history.history['accuracy'], label='train')

pyplot.plot(history.history['val_accuracy'], label='test')

pyplot.legend()

pyplot.show()

****************

Code 6

(.env) [boris@fedora34server NUMPY]$ cat vahish2Issue10.py

# deeper mlp with relu for the two circles classification problem with callback

from sklearn.datasets import make_circles

from sklearn.preprocessing import MinMaxScaler

from keras.layers import Dense

from keras.models import Sequential

from tensorflow.keras.optimizers import SGD

from keras.callbacks import TensorBoard

# generate 2d classification dataset

X, y = make_circles(n_samples=1000, noise=0.1, random_state=1)

scaler = MinMaxScaler(feature_range=(-1, 1))

X = scaler.fit_transform(X)

# split into train and test

n_train = 500

trainX, testX = X[:n_train, :], X[n_train:, :]

trainy, testy = y[:n_train], y[n_train:]

# define model

model = Sequential()

model.add(Dense(5, input_dim=2, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(5, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(5, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(5, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(5, activation='relu', kernel_initializer='he_uniform'))

model.add(Dense(1, activation='sigmoid'))

# compile model

opt = SGD(learning_rate=0.01, momentum=0.9)

model.compile(loss='binary_crossentropy', optimizer=opt, metrics=['accuracy'])

# prepare callback

tb = TensorBoard(histogram_freq=1, write_grads=True)

# fit model

model.fit(trainX, trainy, validation_data=(testX, testy), epochs=500, verbose=0, callbacks=[tb])

***********

Как подавить сообщения Пайтон о том , что при наличии GPU производительность может выше за счет AVX2 FMA директивы :-

"This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations: AVX2 FMA"

Добавьте импорт

import os

os.environ['TF_CPP_MIN_LOG_LEVEL'] = '3'

и выполните

$ export TF_CPP_MIN_LOG_LEVEL=2

Run Code 5

Run Code 6 above

References

https://machinelearningmastery.com/how-to-fix-vanishing-gradients-using-the-rectified-linear-activation-function/
